Attractive Powered Wheelchair

home
Attractive Powered Wheelchair
Attractive Powered Wheelchair
Price And Quantity
  • Piece/Pieces
  • 1
  • Piece/Pieces
  • INR
    Product Specifications
    • Standard Wheel Chair
    • Steel
    • Yes
    • Yes
    • Yes
    • Fixed
    • PVC
    • Polished
    • Vinyl Fabric
    • 970 Millimeter (mm)
    • Electric
    • 03 Years
    • 74 Kilograms (kg)
    Product Description

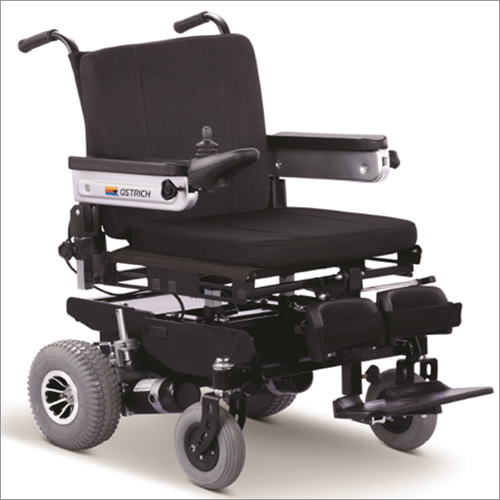

    Attractive Powered Wheelchair

    Tetra LX is the most costeffective and attractive powered wheelchair with revolutionary Split Frame Chassis SFC This mobility equipment provides the most economic indoor and allterrain mobility Portability is enhanced by the removable seat design

    Technical Specification



    • Load capacity 130 kg 286 lbs
    • Speed 8 kmH max
    • Speed selection 5 speeds



     Motor



    • Power: 200 - 220W
    • Motor speed: 4200-4700 RPM
    • Gear ratio: 32:1
    • Brake: Electromagnetic
    • Permissible Gradeability: 12 0
    • Drive Range: 12-15 Km / Charge



    Tyre & Battery
    • Tire (Puncture free foam-filled rubber tires)
    • Front- Tire diameter X Tire Width: 190 mm X50 mm /7.48  X2
    • Rear- Tire diameter X Tire Width: 260 mm X80mm /10.23 X3.14
    • Anti tippers- 32mm/1.2 solid
    • Battery: 24 Volt 24 Ah Sealed Maintenance Free VRLA
    • Charger: Input-230/240 Volts AC Single phase, Output-24 Volts-5 Amps DC
    Dimensions
    • Overall length with footrest and tipper wheel (at 90 degrees): 1020mm/40.05
    • Overall width: 580mm/22.82
    • Overall height: 970mm /38.19
    • Overall height after folding the seat: 710mm /27.95
    • Overall weight: 74 Kg/163 lbs
    • Ground clearance: 75mm/3
    • Turn circle radius:880mm/34.64
    Seat
    • Seat depth: 420mm /16.53
    • Seat width: 400mm/15.74
    • Backrest height: 400mm /15.74
    • Backrest width: 400mm 15.74
    • Seat baseheight from ground: 500mm/19.68
    • Manual seat height adjustment up to 75mm /3
    • Frame height when seat removed: 350mm/13.77
    Arm Rest
    • Width: 50mm/2
    • Length:360mm/14.17
    • Height adjustment:180mm/7
    • Width adjustment: yes
    Foot Rest
    • Length: 190mm /7.48
    • Width: 340mm/13.38
    • Length adjustment: 100mm/4
    • Angle adjustment: Up to 90 degrees


    Trade Information
    • 10 Per Week
    • 7-10 Days
    • All India
